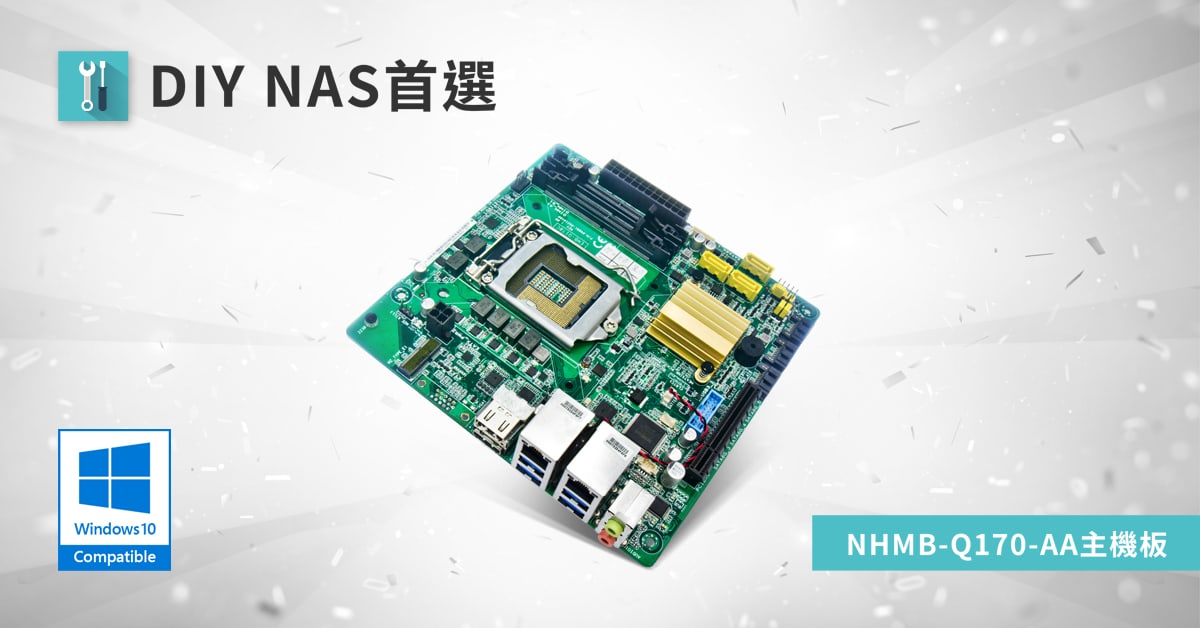

NHMB-Q170-AA DIY NAS 首選主機板


  • 採用Intel 第六代SKYLAKE處理器

  • 採用DDR4 2133/1867 SO-DIMM記憶體,最大可支援32GB

  • 提供六組SATA III

  • 提供PCIe [x8]M.2擴充槽

  • 通過微軟Windows 10 WHQL認證

  • 通過FCCCE、BSMI產品檢驗


















System

CPU

Intel® Skylake-S LGA 1151 socket Processor, Max. 65W TDPs

Chipset

Intel® Q170 Express Chipset

Memory

2 x SO-DIMM, Max. 32GB, DDR4 2133/1867 MHz, Non-ECC (Vertical Type)

Dual channel memory architecture

Graphics

Intel® HD Graphics

I/O Chipset

NCT6791D

Storage

6 x SATA 6Gb/s

Ethernet

1 x Intel PCIe Gb LAN 219LM for vPro
1 x Intel PCIe Gb LAN 211AT

Audio

Realtek® ALC887 with Amp.

TPM

Infineon SLB9665TT2.0(Optional)

Expansion Slots

1 x  PCIe [x8]

1 x M.2 slot(E-key), 22 x 30mm  (PCIe) @ bottom side

BIOS

128Mbit Flash ROM, AMI BIOS

H/W Monitor

Temperature Monitor on CPU/Chassis

Voltage Monitor on Vcore/5V/12V

Fan Monitor on CPU/Chassis

WatchDog Timer

1~255 step by software program

Smart Fan Control

CPU Fan / Chassis Fan

Wake On LAN / PXE

Yes (WOL / PXE)

Power State

S3, S4, S5

Graphics

Graphics Multi Display

HDMI+HDMI

VGA

No

DVI

No

HDMI

Up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, with Digital Audio

DP

No

LVDS

No

Backlight Control

No

I/O

Storage

6 x SATA 6Gb/s

USB

6 x USB 3.0 ports (4 pots at Rear IO, 1 box header supports 2 ports internally)

Display I/O

2 x HDMI

Audio I/O

Mic-in, Line-out

LAN I/O

2 x RJ-45

Parallel Port

No

FAN

1 x CPU Fan connector (4-pin)

1 x Chassis Fan connector (4-pin)

Environement
& Power & ME

Battery

Lithium battery

Power Requirement

ATX

Power Compliance

Compliant with EuP / ErP

Operating Temperature

0~60°C

Operating Humidity

0%90%RH, non-condensing

Certificate

CE & FCC & BSMI

Form Factor

Mini ITX Form Factor, 6.7”x 6.7” (170mmx170mm)

Weight

1.1 lb (0.5 kg)

Placement

Back Panel I/O Ports

2 x HDMI

1 x LAN (RJ45) + 2 x USB 3.0

1 x LAN (RJ45) + 2 x USB 3.0

1 x Audio jacks for Min-in & Line out

Internal I/O Connectors

1 x PCIe [x8]

1 x M.2 slot(E-key), 22 x 30mm  (PCIe) @ bottom side

6 x SATA 6Gb/s

1 x USB 3.0 connectors supports additional 2 USB ports

1 x 4 PIN (2x2) internal power connector

1 x 4 PIN CPU Fan connector

1 x 4 PIN Chassis Fan connector

1 x Front Panel connector

1 x Speaker for 2W/4Ω

1 x Chassis Intrusion follow ASUS pin out

1 x Buzzer on board

1 x AT/ATX mode select jumper (default: No)

1 x clear CMOS jumper

Others

OS Supported

Windows 7 32/64 bit

Windows 8.1/10 64 bit

Linux Fedora

Accessories

Customized I/O Shield
