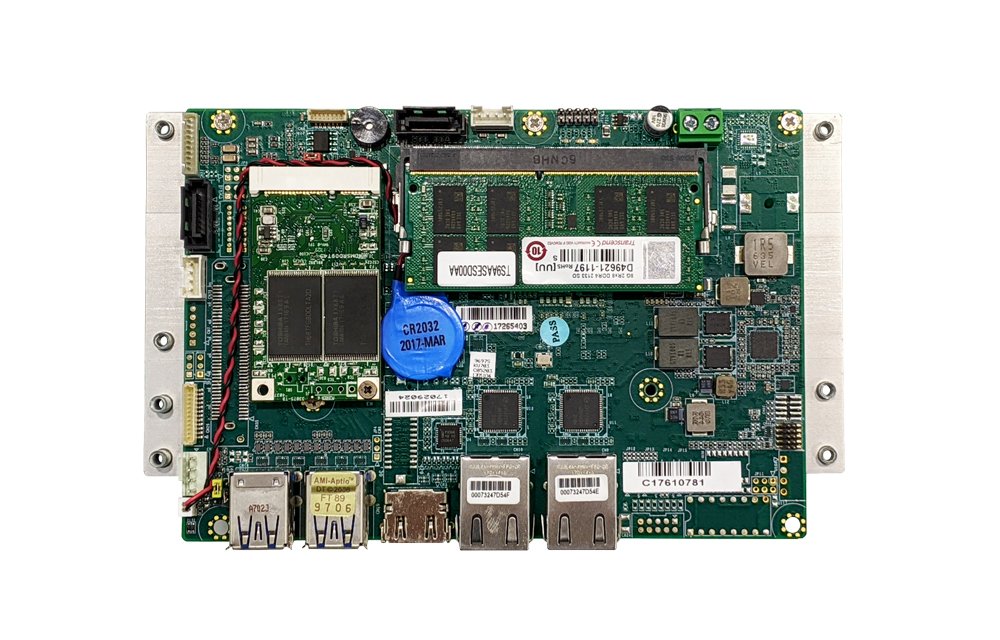

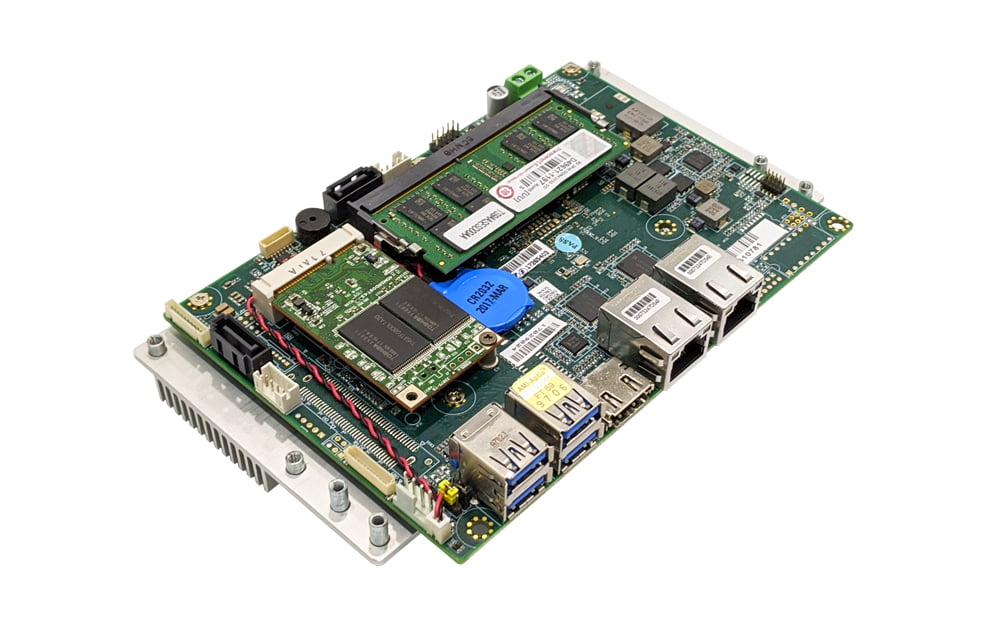

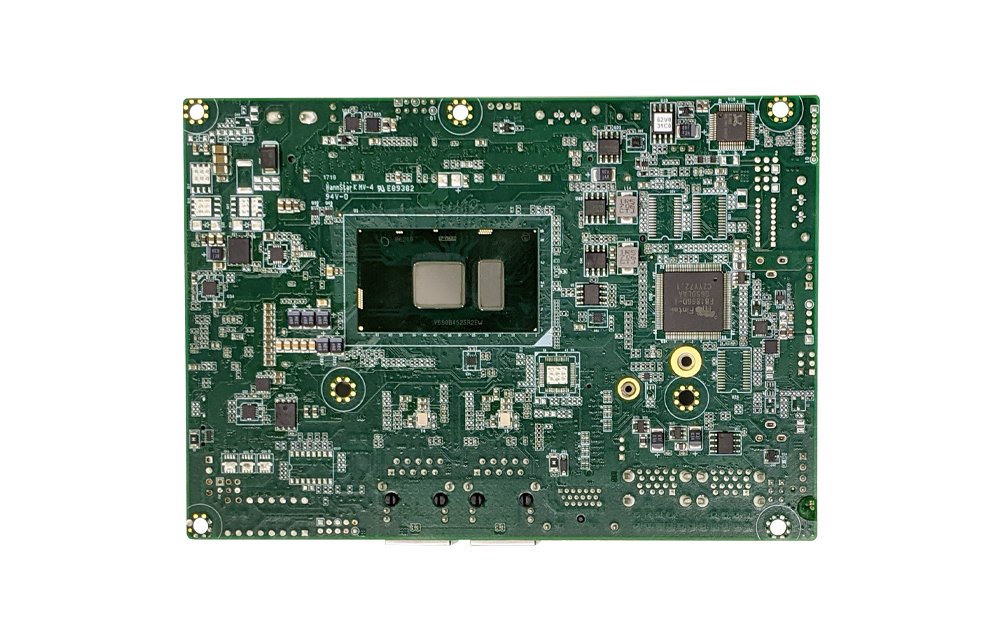

NSMB-SKU6-AB 3.5吋 嵌入式主機板

  • 主機板尺寸為146mm x 101.7mm,結構緊湊
  • 採用 Intel® Skylake-U 3955U 處理器
  • 支援 DDR4 1800/2133 SODIMM x 1(出廠搭配8GB,可擴充至 16GB)

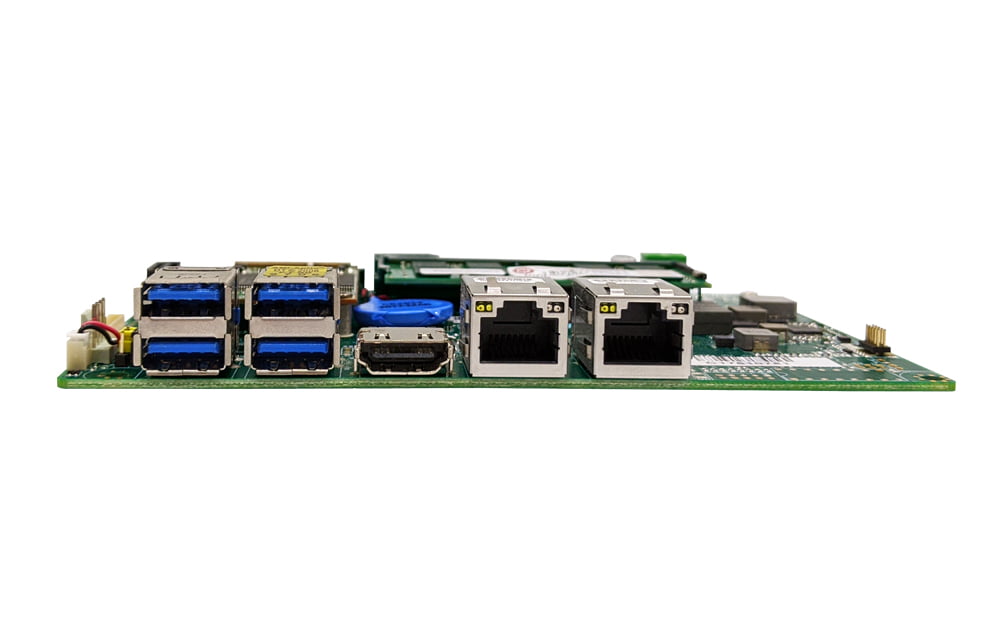

  • 提供 HDMI 1.4a x 1、Giga LAN x 2
  • 提供 SATA III ( 6.0 Gb/s ) x 2 、USB 3.0 x4 、mSATA slot x 1(1xFull size)、M.2 2230 E-Key slot x 1(for Wi-Fi)

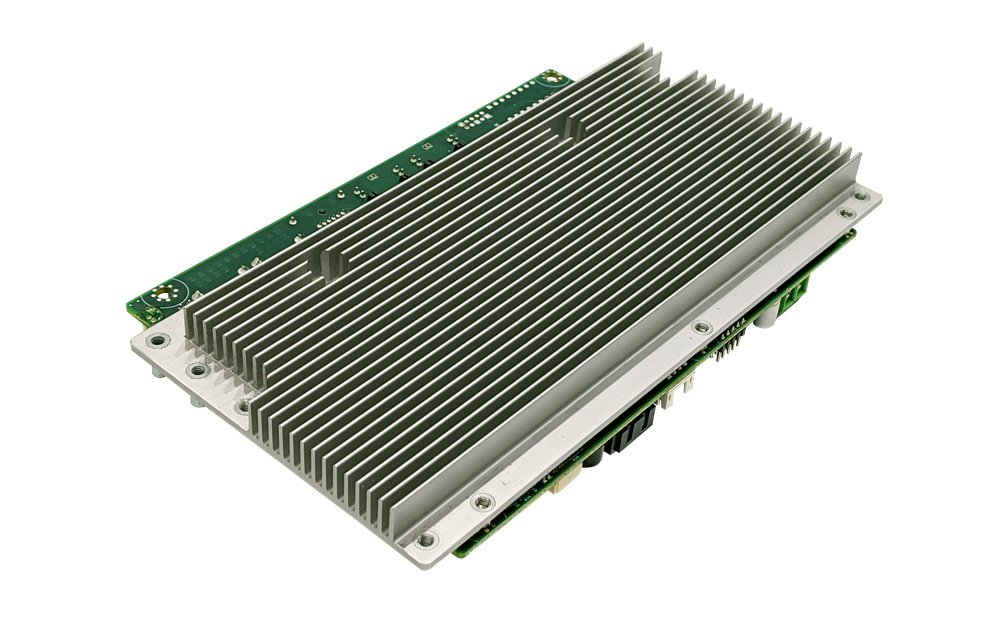

  • 採用無風扇設計,出廠搭配鋁擠型散熱鰭片
  • 可選購 Power Button

System

 Form Factor

3.5'' SubCompact Board

 CPU

Intel® Skylake-U 3955U SoC Processor

 CPU Frequency

up to 2.0GHz

 Chipset

Intel® Skylake-U 3955U SoC Processor

 Memory Type

DDR4 1866/2133 SODIMM×1

 Max. Memory Capacity

Up to 16GB

 BIOS

UEFI

 Wake On LAN

Yes

 Watchdog Timer

255 Levels

 Power Requirement

+12V only

 Power Supply Type

AT/ ATX

 Power Consumption (Typical)

Intel® Celeron 3955U, DDR4 2133MHz 16G, 0.83A@ +12V

 Dimension

5.75" x 4" (146mm x 101.7mm)

 Operating Temperature

32°F ~ 140°F (0°C ~ 60°C)

 Storage Temperature

-40°F ~ 176°F (-40°C ~ 81°C)

 Operating Humidity

0% ~ 90% relative humidity, non-condensing

 MTBF (Hours)

176,000

Certification

 CE/FCC

Display

 CRT/ LCD Controller

Intel® Skylake-U 3955U SoC Processor

 Video Output

HDMI 1.4a×1(4K×2K) with audio resolution: up to 3840 x 2160

I/O

 Ethernet

Intel i211, 10/100/1000Base, RJ 45 x2

 Audio

Realtek ALC892

 USB Port

USB 3.0 × 4

 I/O Chips

Fintek F81866

 HDD Interface

SATA 3.0 × 2, +5V/+12V SATA power connector x 2

 SSD

mSATA(full-size)

 Expansion Slot

M.2 E-key

 DIO

8 Bit

 TPM

× 1 (option)

 Others

Fanconnector (12V) × 1, support 3/4 PIN


內建 mSATA 之規格

Brand

InnoDisk

Flash Disk

Type

mSATA

interface

SATA III

Type flash memory

MLC

Capacity

128 GB

Transfer Rate Maximum Read

220 MB/s

Transfer Rate Maximum Write

130 MB/s

System Power Input

Input Voltage DC

3.3 V

Operating Conditions

Temperature

0~70 °C

MTBF

3,000,000 h
